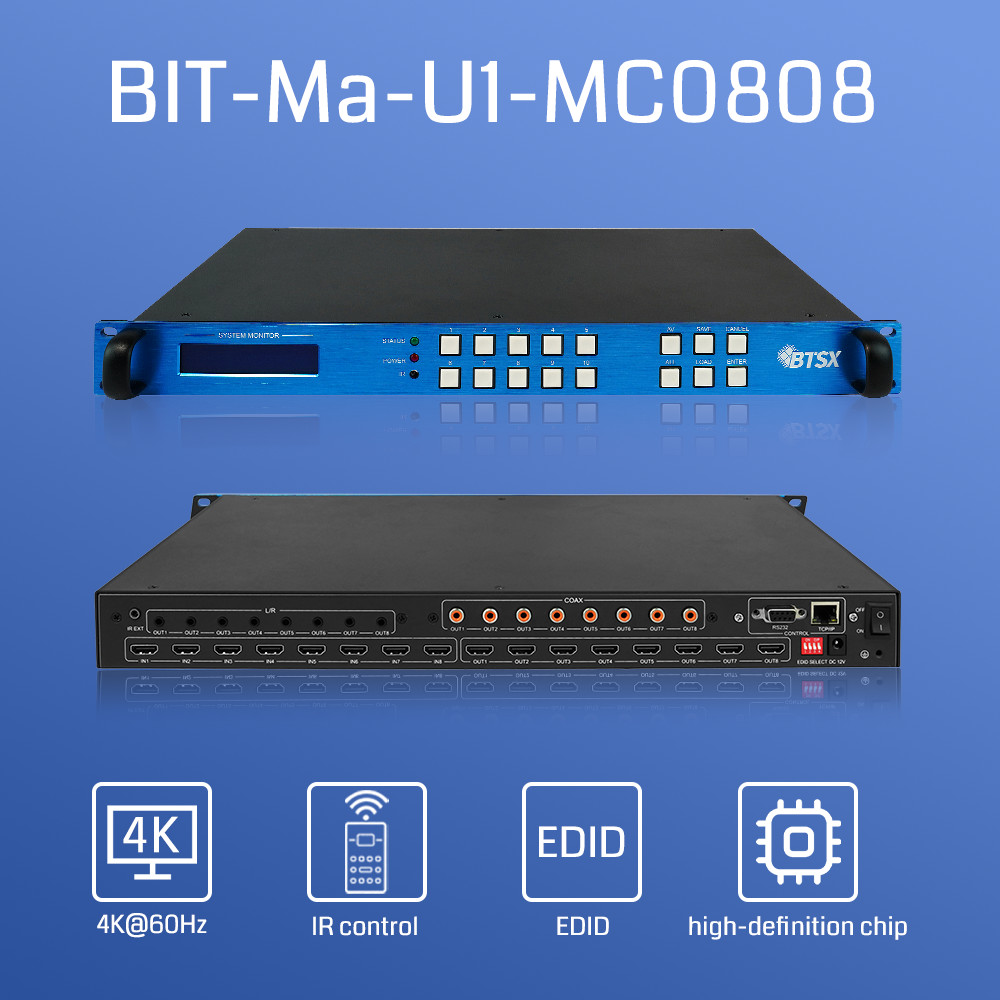

3D Video RS232 Hdmi Matrix Switcher 8x8 4x4 2x2 8 In 8 Out BIT-Ma-U1-MC0808

Name: 3D Video RS232 Hdmi Matrix Switcher 8x8 4x4 2x2 8 In 8 Out BITMaU1MC0808
Brand: bitvisus
Price: 1 USD

Buy cheap 3D Video RS232 Hdmi Matrix Switcher 8x8 4x4 2x2 8 In 8 Out BIT-Ma-U1-MC0808 product

Brand Name : bitvisus

Model Number : BIT-Ma-U1-MC0808

Certification : CE,HDMI,HDCP,RoHS,FCC

Place of Origin : China

MOQ : 1Piece

Price : Contact Us

Payment Terms : T/T, PayPal

Supply Ability : 1000Piece/30day

Delivery Time : 7-30day

Packaging Details : Packing box

Private Mold : Yes

Color : Black

Control method : RS232/RJ45,push-button, IR remote Control

HDMI Compatible : HDMI 2.0

HDCP Compatible : HDCP 2.2/1.4

Input Port : 8xHDMI TypeA,1xIREXT

Output Port : 8xHDMI TypeA,8xCoax Audio(RCA),8xL/RAudio

Operating temperature : -10°C~45°C/14°F~113°F

Contact Now

Newest New HDMI matrix 8x8 4x4 2x2 support 3D video RS232 8 In 8 Out hdmi matrix switcher

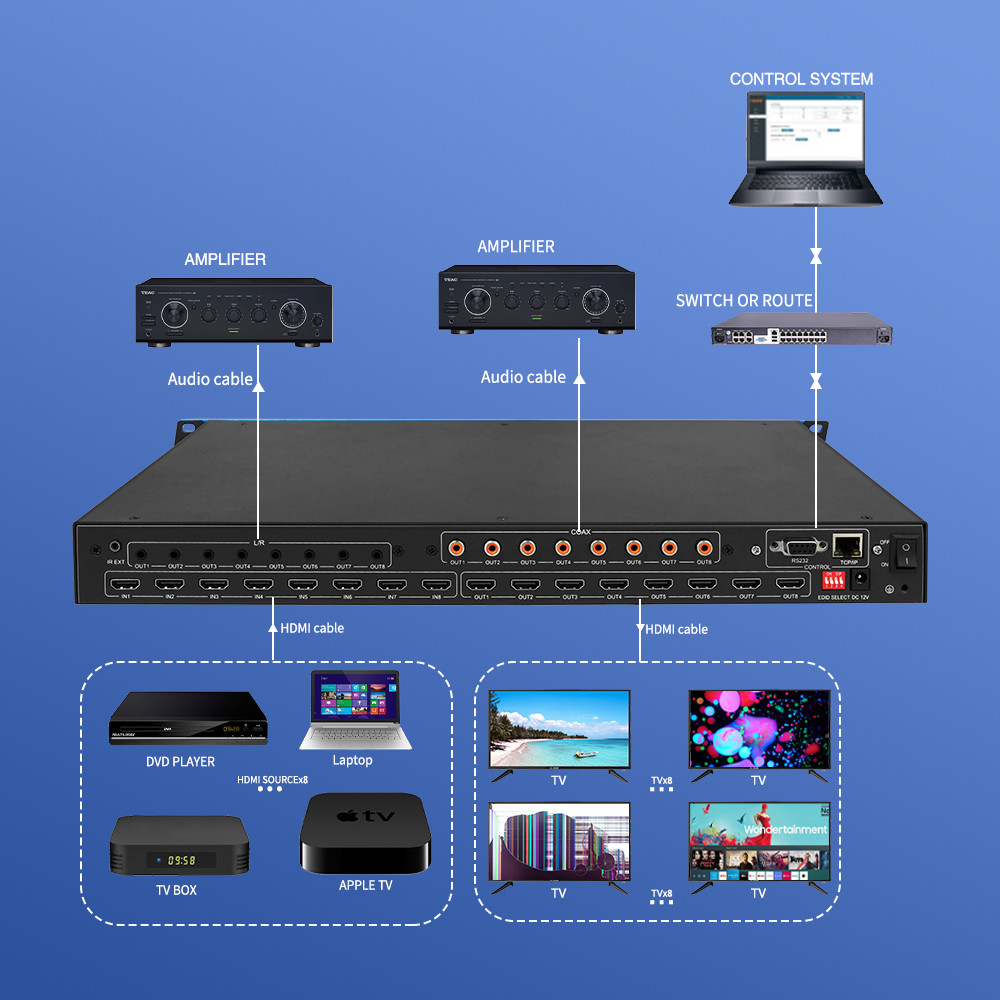

The BIT-Ma-U1-MC0808 matrix switcher supports high-resolution video transmission up to 4K2K@60Hz and multi-channel digital audio from 8 HDMI signal sources to 8 HDMI display devices. It also supports stripping audio from HDMI sources to coaxial audio outputs.

3D Video RS232 Hdmi Matrix Switcher 8x8 4x4 2x2 8 In 8 Out BIT-Ma-U1-MC0808

Key Features:

4K60 Video Transmission: Supports up to 4K2K@60Hz video resolution for crystal-clear visuals.
Multi-Channel Audio: Compatible with various HDMI audio formats including LPCM 2/7.1, Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X.
Flexible Switching: Allows switching between 8 input and 8 output channels with ease.
Extensive Connectivity: Features coaxial and analog audio outputs, RS-232, TCP/IP control interfaces, and an IR EXT interface for enhanced flexibility.

Specifications:

HDMI Audio Formats: LPCM 2/7.1, Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Power Supply: Input: AC 100~240V 50/60Hz; Output: DC 12V/2-3A (US/EU standard, CE/FCC/UL certification)

3D Video RS232 Hdmi Matrix Switcher 8x8 4x4 2x2 8 In 8 Out BIT-Ma-U1-MC0808

Specification Parameters

Product model	BIT-Ma-U1-MC0808
shell	metal shell
color	black
size	440mm(L)×200mm(W)×44.5mm(H)
weight	4kg
Power supply	nput:AC100~240V50/60Hz Output:DC12V/2-3A(US/EUstandard,CE/FCC/ULcertification)
power consumption	43W
operating temperature	-10°C~45°C/14°F~113°F
Storage temperature	-20°C~60°C/-4°F~140°F
Relative humidity	20~90%RH(non-condensing)
Warranty	One year

Product Features:

1. Comply with HDMI2.0 and HDCP2.2/1.4 specifications.
2. Video resolution up to 4Kx2K@60Hz.
3. Support 18Gbps video bandwidth.
4. Support Dolby Vision,HDR10+ and HLG.
5. All HDMI output ports support 4K->1080P video scaling function.
6. Supported HDMI audio formats up to 7.1 high-definition audio channels.
7.Support stripping audio from HDMI source to coaxial audio port and analog audio port output.
8.Support dial code for EDID selection.
9.1U rack mount design with front panel LCD display.
10.Control by front panel buttons,infrared remote control,host computer(RS-232andRJ45)
